High Voltage Tester Variants

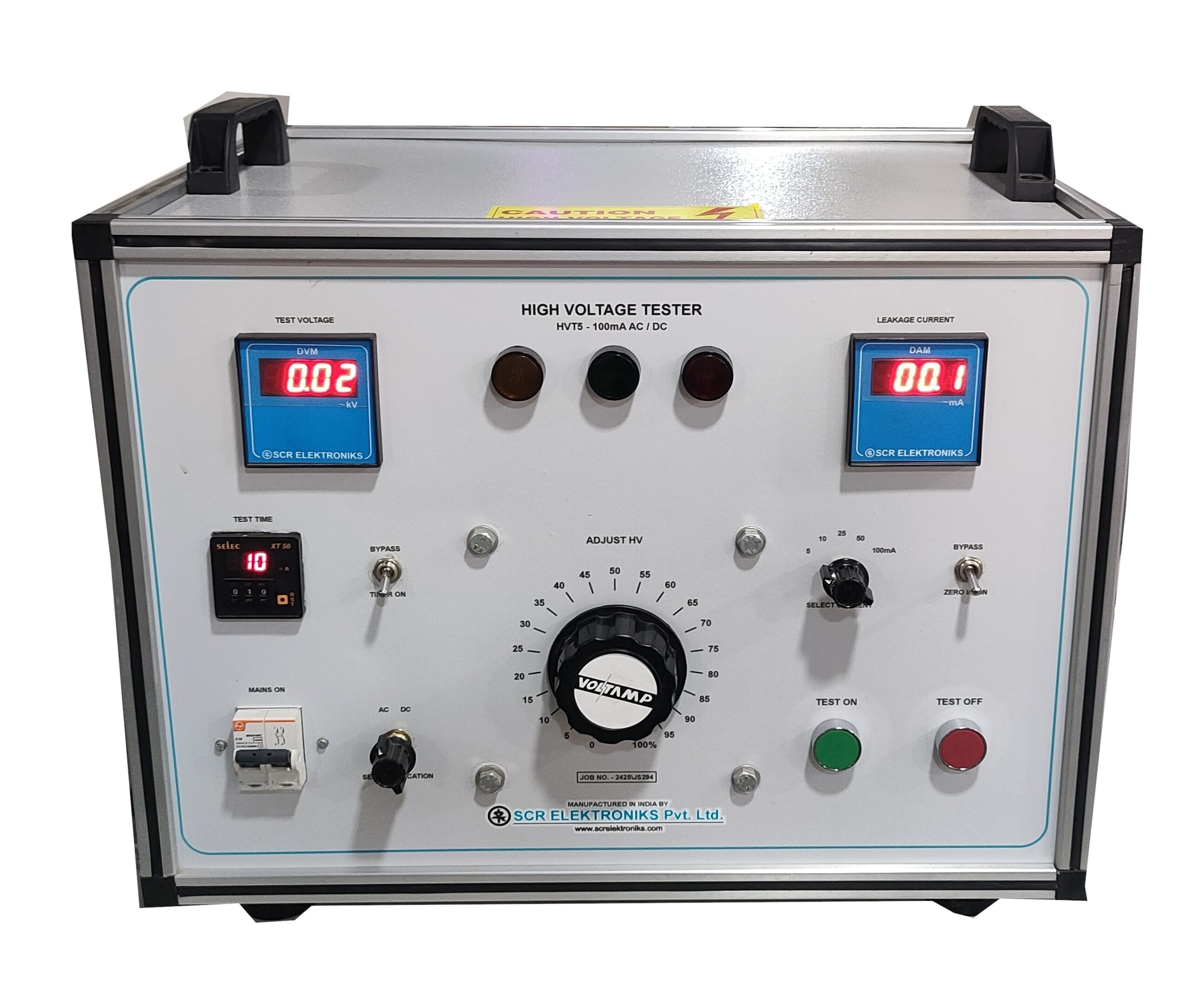

High Voltage Tester 10kV AC and DC
High Voltage Tester 10kV Trolley Type
The SCR Elektroniks High Voltage Tester (Hipot Tester) is a reliable testing equipment used to check the insulation strength and electrical safety of electrical and electronic products. It helps manufacturers identify insulation failures and leakage current issues before products are delivered to customers, ensuring safety, quality, and compliance with industry standards.
The equipment comes with digital displays for voltage and current, programmable test timing, safety interlocks, and a heavy-duty epoxy-cast high-voltage transformer. It is available in AC, DC, and AC+DC versions and can be customized according to specific testing requirements.
Suitable for both laboratory testing and production line applications, the tester is designed for accurate performance, easy operation, and maximum operator safety.
The Hipot Tester works by applying a predetermined high voltage to the product under test and measuring the leakage current through the insulation. If the leakage current exceeds the set limit, the unit immediately trips and identifies the product as faulty.
We can customize the product based on Voltage Level & Leakage Milliampere Level so as to suit its testing needs.
In case of routine testing solution employing mechanical test jigs, the number of MCBs (to be tested simultaneously) can be customized as 1, 4 and 20.
The test bench tests the di-electric withstand capability of the product with settable high voltage and allowable leakage current. Identifying insulation faults, such as short circuits and leakage currents.Verifying that systems meet safety standards and reduce the risk of electrical shocks.Ensuring products meet industry regulations like IEC and UL standards.
High voltage tests, also known as hipot tests, can be performed using either AC or DC voltage, with the choice depending on the specific application and standards, with AC tests being common for evaluating insulation strength and DC tests for measuring insulation resistance. SCR offer this system in various configurations based on your product & applications as per ASTM , UL, IEC standards.
