Ring Wave Generator as per IEC 61008
SCR make Impulse Tester to simulate voltage impulses from lightening strikes on Solar Photovoltaic (PV) cells. This test is described in IEC 61730 – 2 (clause 10.5 Impulse Voltage Test MST 14).
As per IEC 61730 – 2, the solid insulation of the module should with-stand over-voltages of atmospheric origin as well as from switching of low-voltage equipment. This Impulse Voltage Test Instrument is custom designed for this particular test. The waveform generated by the Impulse Voltage Test Instrument is exactly as required as per IEC 60060 – 1.
This waveform (1.2 \ 50microSec) is common to most of the Impulse Voltage Testers except that the energy requirement for this Solar Photovoltaic (PV) is very higher in comparison
The peak voltage can be adjusted by the user. The test sequence i.e. number of Impulse for Positive and Negative polarity, time between two subsequent impulses & so on can be programmed with the help of a dedicated PLC module. The entire sequence, for both positive and negative impulse is automatic. At the end of the test, the test results are displayed on HMI. Output is provided for connecting an oscilloscope for displaying the Wave Form at the output Terminals. In case any flash over occurs, it is detected by a circuit which stops the test sequence, and PLC displays the number of cycles with polarities at which the failure has taken place.
Impulse voltage tests are recommended with the object to determine effect of voltage stress on insulation due to voltage surges of short durations. A surge is a form of over voltage, which may be defined as an exceptional voltage in excess of peak voltage to earth at line or electrical system of which line forms a part (can be caused as a result of lightning strikes as well as other overvoltage spikes in the power system level).
| Sr. No. | Description | Model |
| 1 | Impulse Tester 1.2/50µSec | |
| a) 6kV (1.2/50 µSec) Energy Max. 18J | IT 6A | |
| b) 10kV (1.2/50 µSec) Energy Max 50J | IT 10A | |
| c) 12kV (1.2/50 µSec) Energy Max 70J | IT 12A | |
| d) 15kV (1.2/50 µSec) Energy 112J | IT 15A | |
| e) 20kV (1.2/50 µSec) Energy 200J | IT 20A | |
| f) 6kV (1.2/50 µSec) a) Energy Max. 18J & b) Energy 0.5J | IT 6A EM | |
| 2 | Impulse Tester 6.5kV 1.2/50 µSec with Current Surge 8/20 µSec (Combination Waveform) | ITC6A |
| Impulse Tester 10kV 1.2/50 µSec with Current Surge 8/20 µSec (Combination Waveform) | ITC10A | |
| 3 | Impulse Tester 10/700µSec | |
| a) 6.5kV (10/700µSec) | IT6B | |

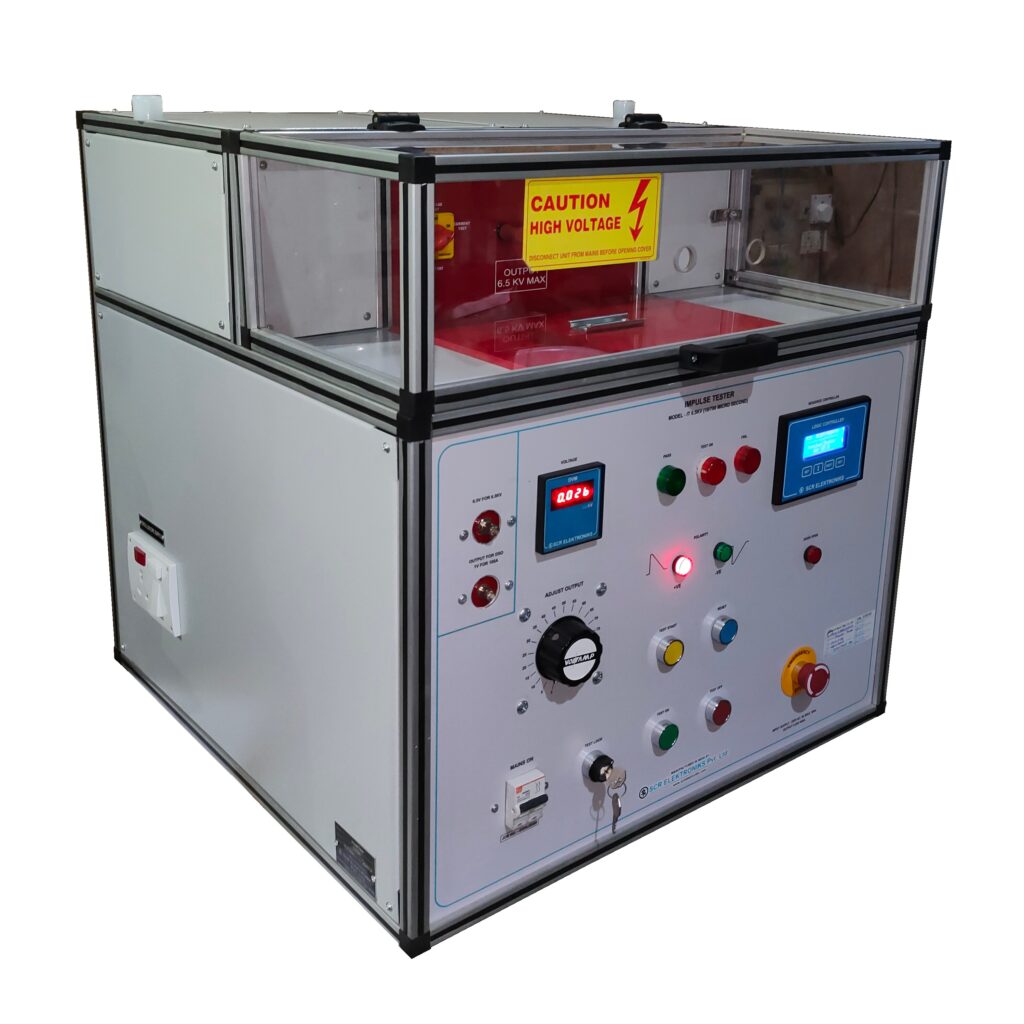

| b) 10kV (10/700µSec) | IT10B | |
| 4 | a) Impulse Tester 6.5kV 10/700 µSec with Current Surge 5/320 µSec (Combination Waveform) | ITC6B |
| 5 | Impulse Test 6.5kV (1.2/50 µSec & 8/20 µSec with Online with POW and CDN as per IEC 61000-4-5 (Combination Waveform) | ITC6/N |

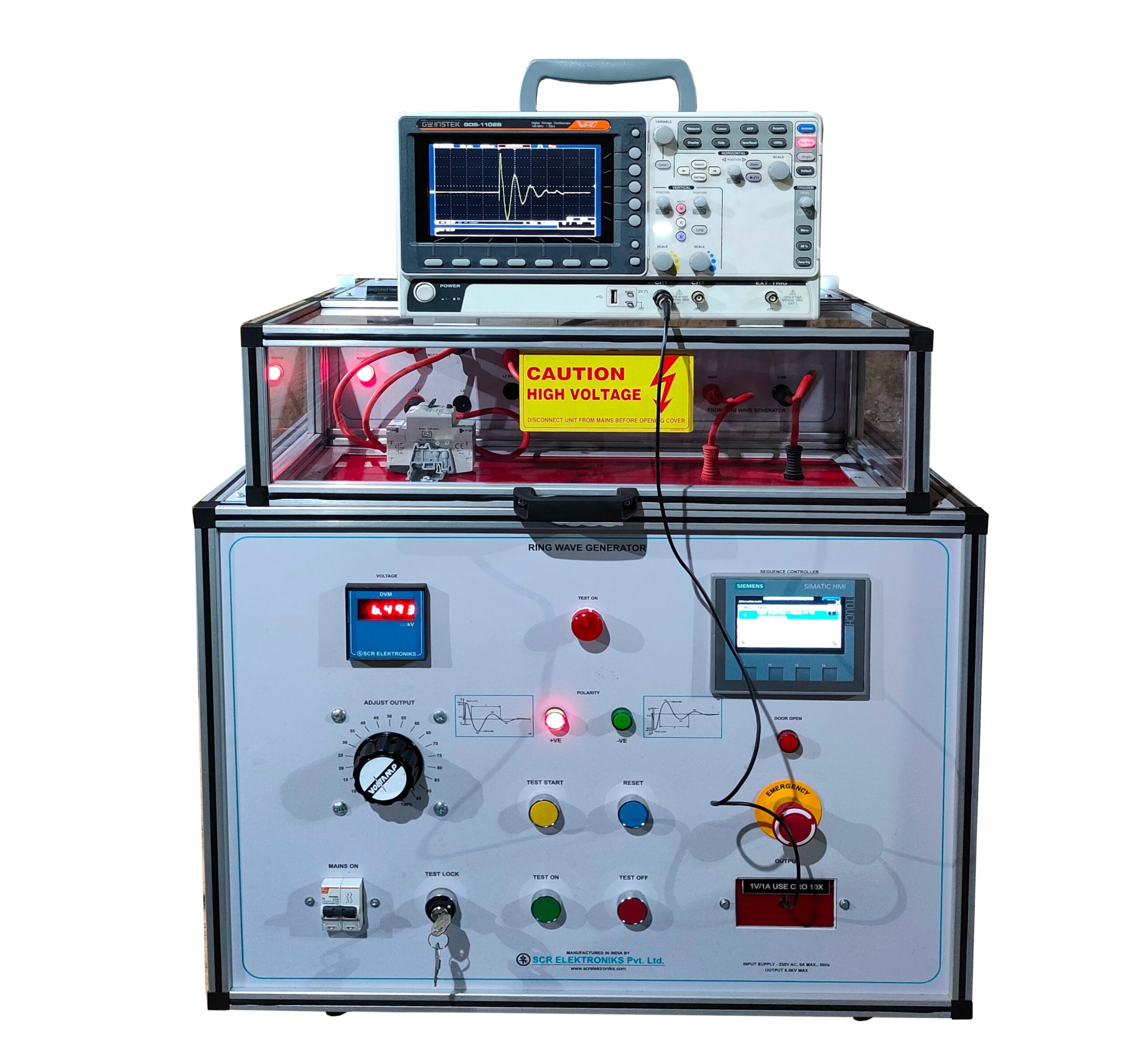

| 6 | Ring Wave Generator with CDN as per IS 12640-1: 2016 / IEC 61008-1:2012 | RWG-6 |
| 7 | Surge Tester 10kV as per IEC IEC 60065 | ST10 |
Impulse Voltage Testers designed to simulate voltage impulses from lightening strikes on Solar Photovoltaic (PV) cells. This test is described in IEC 61730 – 2 (clause 10.5 Impulse Voltage Test MST 14).
