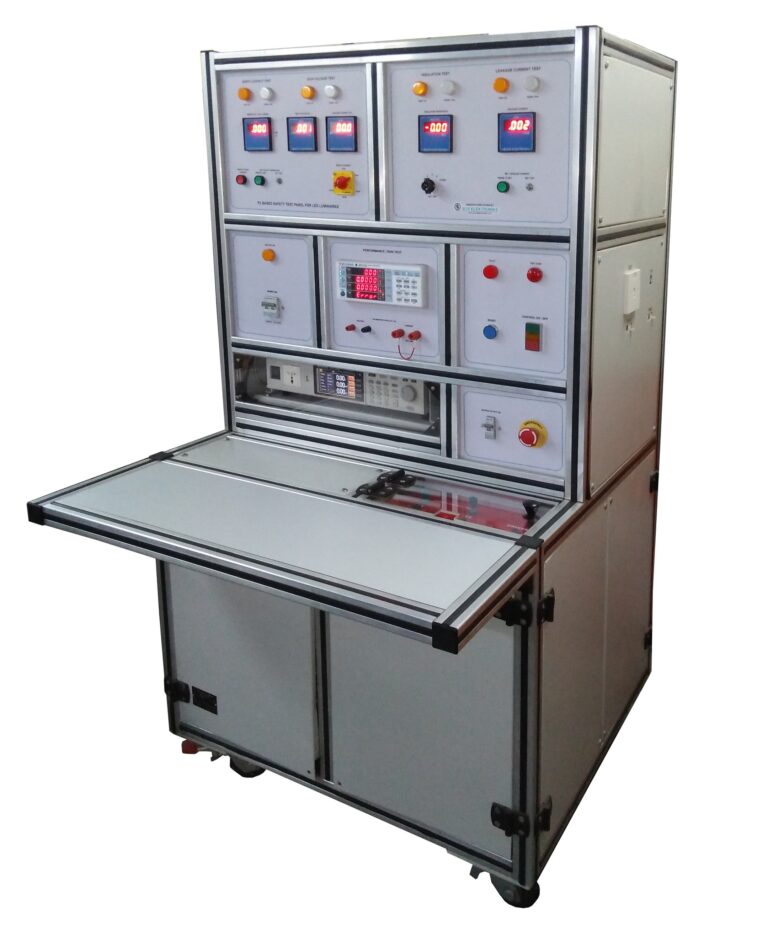

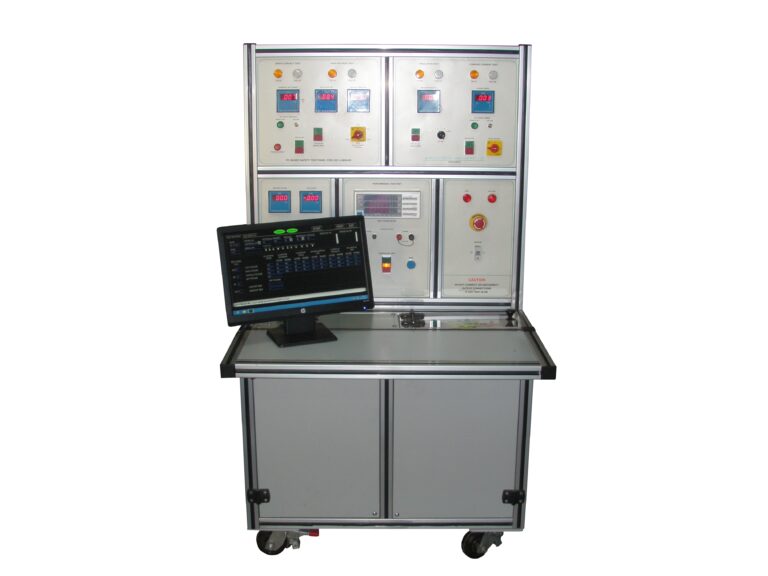

SCR ELEKTRONIKS introduces LED Testing Equipment – PC Based Safety Test Panel for LED Luminaries, a comprehensive, automated solution designed to ensure compliance, reliability, and performance of LED lighting products. Available with Servo Controlled Source or AC Solid State Source. The system integrates seamlessly with PC-based control for precision testing, data management, and traceability.
The Testing Setup is available with Servo Controlled Source or AC Solid State Source.
The panel carries out different tests one by one and provides indication of the Test results as PASS or FAIL. It is very useful and handy in line testing on Mass production line as well as type Testing. Special fixture can be provided for the specific product. This avoids the connections & disconnections of the product for different tests. The total time for entire testing is less than 40 seconds.
Earth Bond Test – 10 Amps / 10 V High Voltage (HV) Test – up to 2 kV Insulation Resistance Test Leakage Current Test Lamp Burning Test Performance Tests
The test setup can be customised to accommodate specific safety and performance parameters. Additionally, if the customer requires a solid-state inbuilt source with voltage synthesis, the system can be equipped with such a source.

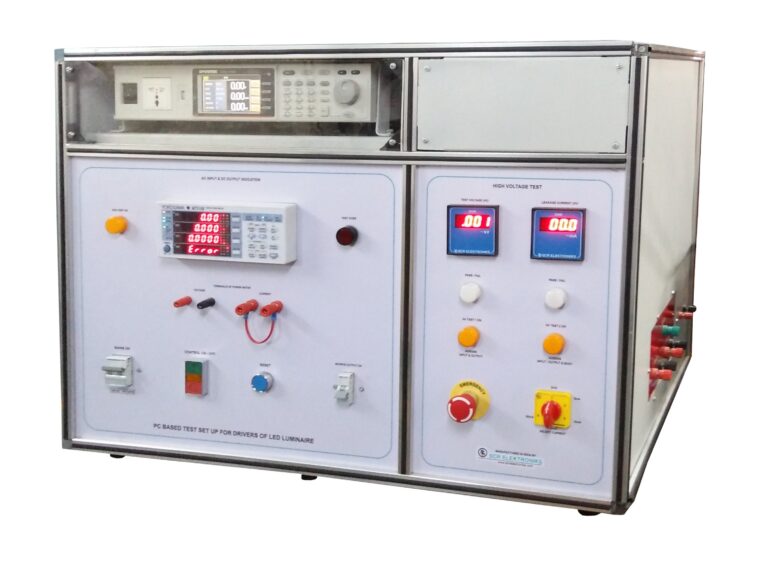

SCR ELEKTRONIKS introduces LED Testing Equipment – PC Based Test Setup for LED Driver, a comprehensive, automated solution designed to ensure compliance, reliability, and performance of LED lighting products. Available with Servo Controlled Source or AC Solid State Source. The system integrates high-voltage safety checks, performance evaluation, and efficiency analysis under controlled conditions.
The Testing Setup is available with Servo Controlled Source or AC Solid State Source.
It is very useful and handy in line testing on Mass production line as well as type Testing. Special fixture can be provided for the specific product. This avoids the connections & disconnections of the product for different tests. The total time for entire testing is less than 80 seconds. Micro controller based sequential timer maintains the sequence of operation and displays the test status. The entire system is housed in sturdy M.S cabinet with powder coating
The test setup can be customized with respect to the safety and performance test parameters. Also, in case if the customer needs a solid state inbuilt source with voltage synthesis, such a source can be inbuilt in the system. The customer can also choose the accuracy levels of input and output parameters, thus measurement modules can be integrated
SCR Elektroniks developed- The PC-Based Test Setup for LED PCB of Luminaires is an advanced, automated testing solution designed to ensure the quality and reliability of LED assemblies used in lighting applications. The system integrates high-voltage testing, insulation resistance measurement, functional run tests, and NTC resistance checks, all controlled through a PLC and interfaced with a PC for data logging and report generation. This setup enhances productivity, accuracy, and compliance with industry standards.
The panel carries out different tests one by one and provides indication of the Test results as OK or NOT-OK. It is very useful and handy in line testing on Mass production line as well as type Testing. Special fixture can be provided for the specific product. This avoids the connections & disconnections of the product for different tests. The total time for entire testing is less than 40 seconds.
SCR ELEKTRONIKS make PC Based Test Bench for LED PCB includes following test functions:
SCR ELEKTRONIKS make LED Luminaire Comprehensive Tester is a PC-based, fully integrated electrical safety and performance test bench designed for complete evaluation of LED luminaires, including LED PCB, LED Driver, and assembled LED lighting fixtures.
The system combines electrical safety testing, insulation and leakage measurements, and advanced electrical performance analysis in a single platform. It is engineered to comply with IEC / IS safety standards and is ideally suited for production lines, quality assurance laboratories, and certification testing facilities
Our continuous drive for innovation has led to regular upgrades across our product range. Earlier, we manufactured three separate systems for testing drivers, MCPCBs, and luminaire components. SCR Elektroniks has now developed a comprehensive tester that integrates all three systems into a single test bench.
This unified bench enables testing of the luminaire driver, luminaire PCB, and the final luminaire assembly at one place. Since many test parameters are common across these applications, all required tests have been consolidated into a single platform. Only the relevant tests are enabled for each device under test (DUT), while others remain disabled.
The LED Luminaire Comprehensive Tester is a PC‑based integrated test system designed to perform complete electrical safety and performance evaluation of LED PCB, LED Driver, and fully assembled LED lighting fixtures. The system combines multiple safety tests such as earth bond, high voltage, insulation resistance, and leakage current along with operational and performance measurements within a single platform. With automated test sequencing, accurate measurement techniques, and data logging capability, it is ideally suited for production testing, quality assurance, R&D, and compliance verification of LED luminaires.
SCR Elektroniks make LED testing equipment is designed to test all the relevant safety and performance tests of the LED and its components – LED driver, lighting PCB and complete LED luminaire. The product is an excellent solution for startup LED companies as it is an all in one solution at a relativlely less price as compared to individual test bench for PCB, driver and a luminaire
