Motor Starter Testing Panel

Designed for testing, validation, and performance evaluation of motor starters under adjustable voltage and load conditions, ensuring reliable operation, safety, and quality compliance.

1Phase-Starter-with-50A-Source-Load

Test setup for 1phase motor starter with 50A Source & Load

SCR Elektroniks make Single Phase Starter Test Bench is designed for performance testing, calibration, endurance testing, and functional verification of single-phase starters and related electrical equipment. The setup provides a controlled AC output voltage along with a selectable resistive load, enabling accurate simulation of various operating conditions.

This Single Phase Starter Test Bench provides a safe, accurate, and flexible platform under controlled voltage and load conditions. With a wide voltage adjustment range, universal resistive loading capability up to 50A, integrated measurement instruments, timer facilities, and comprehensive protection features, the system is ideally suited for industrial, laboratory, and quality assurance applications.

Get A Quote

Salient Features

  • Variable AC output voltage adjustable from 130V to 250V AC through heavy-duty variac.
  • High current testing capability up to 50 Amps.
  • Universal resistive load bank with selectable loads from 1A to 50A.
  • Step-wise load selection using selector switches and load chart.
  • Digital metering for accurate voltage and current measurement.
  • Digital timer for ON-time setting and trip-time indication.
  • Contactor with START/STOP push button operation.
  • Input and load protection through MCBs.
  • Rugged MS fabricated trolley with powder-coated finish.
  • Suitable for routine, endurance, and performance testing applications.

Specification

  • Input Supply: 230V AC, Single Phase, 50Hz, 50A Max.
  • Output Voltage: 130V to 250V AC, Variable through Variac
  • Universal Resistive Load Bank, 1A to 50A
  • Digital AC Voltmeter, 0-300V
  • Digital AC Ammeter, 0-50A
  • Digital Timer for ON Time and Trip Time Indication
  • Contactor with START/STOP Push Buttons
  • MCBs for Input and Load Circuits
  • Maximum Load Capacity: 12.5 kVA Approx.

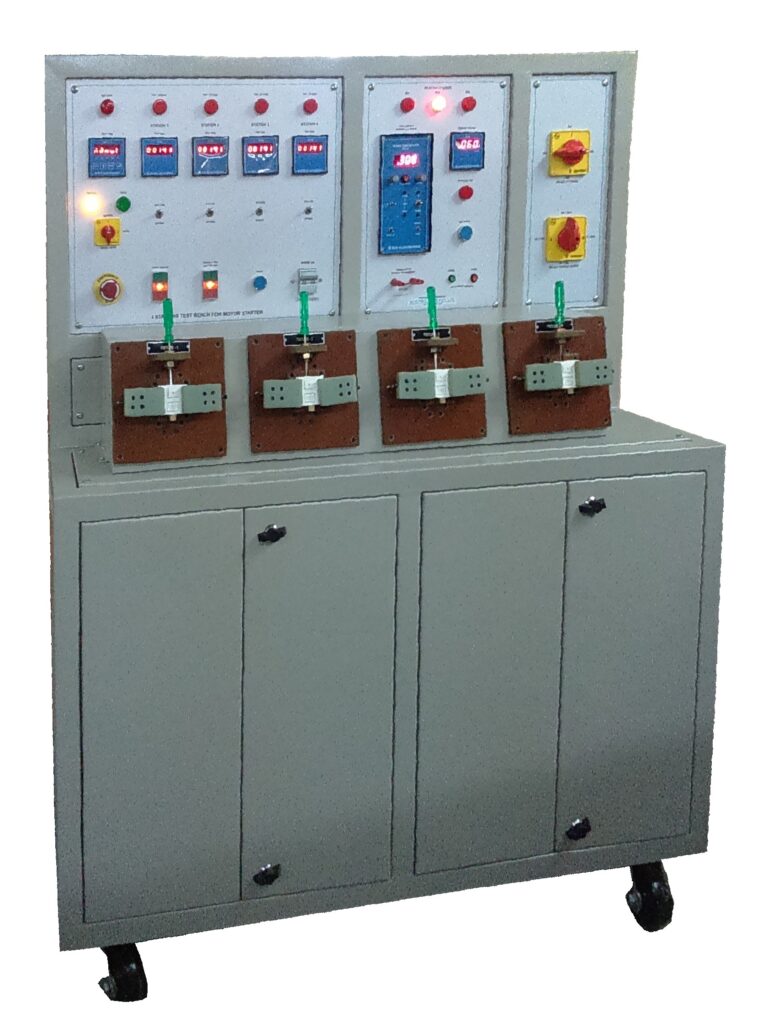

Motor Starter Test Bench - 4 Station

SCR Elektroniks has developed a motor starter test bench to check the continuity of the motor starter against over current.

The bench is customizable for 3, 4, 5, 6 and 12 stations.

Get A Quote
4-station-motor-starter-test-bench

Salient Features

  • Multiple relays can be at a time checked for continuity and reliability to heat. (The number of relays to be tested can be customized).
  • The panel can work in 2 modes:
    a) Manual mode: Here all the settings for current and primary voltage are done manually. The test would only start when the Heating Test On, dual push button is pushed ON.

    b) Timer mode: Here too all the settings for current and primary voltage are to be done manually. Here the timer is set, to enter the time, for which the current is to be passed and the test would only start when the dual start push button is pressed.
  • If the particular station is to be left empty, then it can be bypassed using a toggle switch present on the panel.

Specification

  • Input 230 V, 50 Hz, 3 phase.
  • Pneumatic pressure: 6 – 8 Bar.
  • Output current 5 – 200 A at conveniently low voltage

Application Note

The test bench is used to test motor thermal overload starters capable of interrupting overlaod current.

Customisation

Can be customized with PC mode, where it performs all the operations automatically using TESTWARE, without manually entering the settings again and again.

4-station-motor-starter-test-bench
