SCR Elektroniks designed Portable Wire or Cable Testing Setup is a compact, and highly accurate solution designed to compare the performance of two wire or cable samples under actual load conditions. Housed in a rugged flight case, the system is ideal for on-site demonstrations, laboratory testing, quality control, and product validation.
The test setup mainly comprises a variable (adjustable) Constant Current Source with a precise setting of current with 10 turn pot- meter between 5Amps to 100Amps, arrangement to mount and connect two separate wires under comparison and a current and temperature indicators
A key advantage of the system is its ability to source high current through two cable samples simultaneously, allowing meaningful performance comparisons even at currents approaching or exceeding the cable’s rated capacity.
A key advantage of the system is its ability to source high current through two cable samples simultaneously, allowing meaningful performance comparisons even at currents approaching or exceeding the cable’s rated capacity. This makes it particularly useful for demonstrating product quality and performance against competing cable brands.

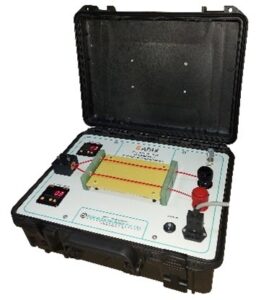

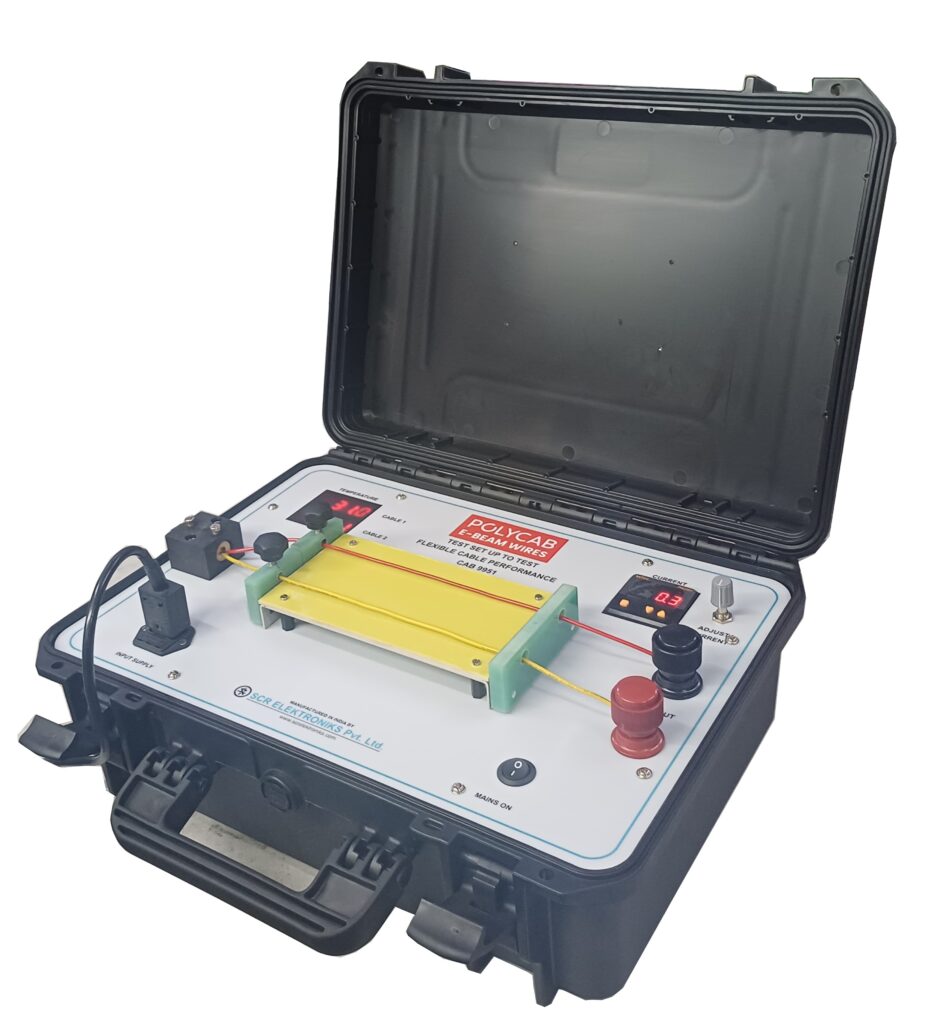

Available in CAB 9911 and CAB 9951 models, the system combines precision current control, reliable measurements, and robust construction in a user-friendly package. The CAB 9951 further enhances testing capabilities with temperature monitoring and higher current-setting accuracy for detailed performance analysis.
| Parameter | Model CAB 9911 | Model CAB 9951 |
| Adjustable Constant Current | 5A to 100A | 5A to 100A |
| Current Adjustment | 10-Turn Precision Potentiometer | 10-Turn Precision Potentiometer |
| Digital Current Measurement | 4-Digit Current Indicator (0–100A) – 2 Nos. | 4-Digit Current Indicator (0–100A) – 1 No. |
| Comparative Testing Capability | Two Wire/Cable Samples | Two Wire/Cable Samples |
| Temperature Monitoring | Not Available | Temperature Display with Non-Contact Probe |
| Thermocouple Input | Not Available | Fine Bid “K” Type CR/AL Thermocouple |
| Construction | Portable Flight-Case Design | Portable Flight-Case Design |
| Suitable Applications | Laboratory, QC, Production & Industrial Testing | Laboratory, QC, Production & Industrial Testing |
| Approximate Weight | 8 kg | 10 kg |
| Approximate Dimensions (L × W × H) | 414 × 345 × 174 mm | 464 × 366 × 176 mm |
| Input Supply | 230V AC ±10%, 50Hz, 5A* | 230V AC ±10%, 50Hz, 5A* |
The CAB 9911 and CAB 9951 provide a reliable and user-friendly solution for wire and cable testing. Both models offer precise current control and easy operation, while the CAB 9951 adds temperature monitoring and higher accuracy for advanced testing applications. These systems are ideal for manufacturers, testing laboratories, and quality assurance teams looking for dependable cable performance evaluation.
SCR ELEKTRONIKS has developed the Wire/ Cable Testing setup is capable of sourcing high current through the two cables, thus determining their characteristics even at currents more than the rated current of the cable.
