SCR Elektroniks has developed a Millivolt Drop Tester (MVDT) with CE Compliance designed for accurate measurement of voltage drop and contact resistance using a controlled high current source of up to 400A. This test is essential for evaluating electrical connections and is often required to meet various IEC standards.
The MVDT is widely used for testing MCBs, MCCBs, switchgear, and other electrical components, ensuring compliance with standards such as IEC 60898, IEC 60947-2, IEC 61008-1, and IEC 61009-1.
SCR Elektroniks offers a range of models, including MVDT M05, M10, M20, and M40, suited for routine testing across different current requirements.
Manual MVDT systems are equipped with a solid-state constant current source, along with a digital ammeter and a multi-range digital millivoltmeter, providing precise and reliable measurements.
All models are delivered as a complete testing solution, including the current source, measurement system, and user interface, with options for PC connectivity or onboard HMI.
The SCR Elektroniks Millivolt Drop Tester is built to fulfill the explicit evaluation criteria mandated by global governing bodies. Its accuracy profile meets or exceeds the testing requirements specified in:
There are various models of this product – 10 V / 20 A, 5V / 50 A, 2 V / 100 A, 2 V / 200 A, 2 V / 400 A. In addition, the product can be PC based with graphical user interfac.
There are various models of this product – 10 V / 20 A, 5V / 50 A, 2 V / 100 A, 2 V / 200 A, 2 V / 400 A. In addition, the product can be PC based with graphical user interface.

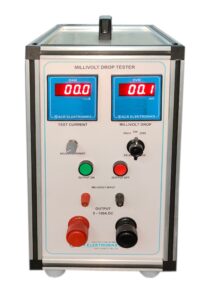

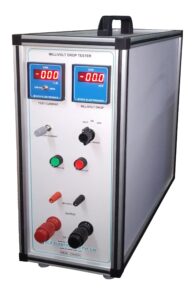

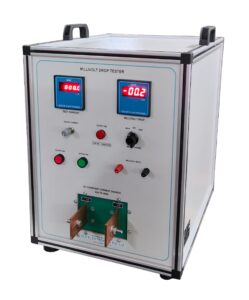

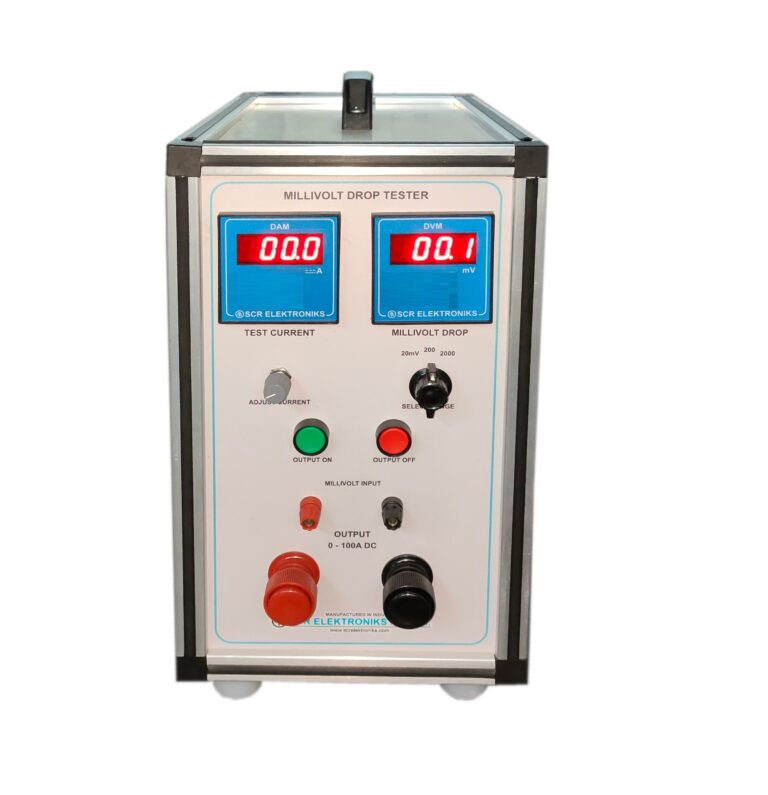

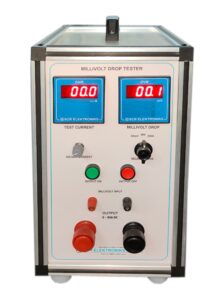

Model | MVDT 50A (M 5) | MVDT 100A (M 10) | MVDT 200A (M 20) | MVDT 400A (M 40) |
Current Range | 2A–50A | 5A–100A | 10A–200A | 10A–400A |
Output Voltage | 2V DC (constant current source) | 2V DC | 2V DC | 2V DC |
Digital Millivolt Meter Range | 0–20 mV, 0–200 mV, 0–2000 mV | Same | Same | Same
|
Digital Ammeter Range | 0–50.0A DC | 0–100.0A DC | 0–199.9A DC | 0–400.0A DC |
Output Terminals | Cable with Copper Clips | Cable with Copper Clips | Cable with Copper Clips | Cable with Copper Clips |
Cable Length | 1 meter | 1 meter | 1 meter | 1 meter |
Panel Construction | Standard MS fabricated panel with robust build (Tabletop Model) | Standard MS fabricated panel with robust build (Tabletop Model) | Standard MS fabricated panel with robust build (Tabletop Model) | Standard MS fabricated panel with robust build (Tabletop Model) |
It can be customized with a dedicated PLC that stores test settings, runs the test sequence, measures millivolt drop and resistance, and saves results for later use or PC download.
The PC‑based TestWare software displays these results and allows them to be exported to Office applications.
The product is used to measure the millivolt drop at a high dc voltage or to assess the micro-ohms of an MCB. The measurement is important – the MCB should not drop more voltage and consume active power in real world. Also the test ascertains if the MCB contacts are properly manufactured in side the MCB to prevent unwanted drops. The tester can be used as a routine tester if the manufacturers desires for additional compliance and quality control.
SCR Elektroniks manufactures high-precision Millivolt Drop Testers (CE Certified) designed for accurate voltage drop and contact resistance measurement.
This testing is essential to ensure the reliability and performance of electrical components and is conducted in compliance with various IEC standards.With robust design and reliable measurement capability, SCR Elektroniks’ testers help maintain quality, safety, and performance in electrical products.
