High Voltage and Routine Testing Setup for RCCB/PRCD
High Voltage and Routine Testing Setup for RCCB/PRCD Designed to verify High Voltage & Routine Test in compliance with IEC 61009-1 High Voltage and Routine Testing Setup for RCCB/PRCD (Plug-Mounted) – PC Controlled SCR Elektroniks has developed PRCD test setup a for conducting Routine Tests and High Voltage (HV) Tests with PC Controlled on Plug Mounted RCCB/PRCD […]

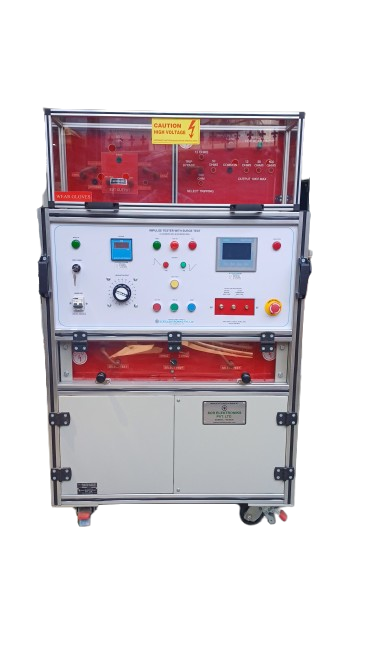

Impulse Voltage Tester with Surge Current (Combination Waveform) as per IEC 61000-4-5
Impulse Voltage with Surge Current Tester (IEC 61000-4-5) Impulse Voltage with Surge Current Immunity Test system – Precision 1.2/50 μs Voltage & 8/20 μs Current Waveforms with IEC-Compliant (CDN) as per IEC 61000-4-5 & other relevant standards. Impulse Voltage with Surge Current Immunity (Combination Waveform ) as per IEC 61000-4-5 The SCR Elektroniks developed Impulse […]

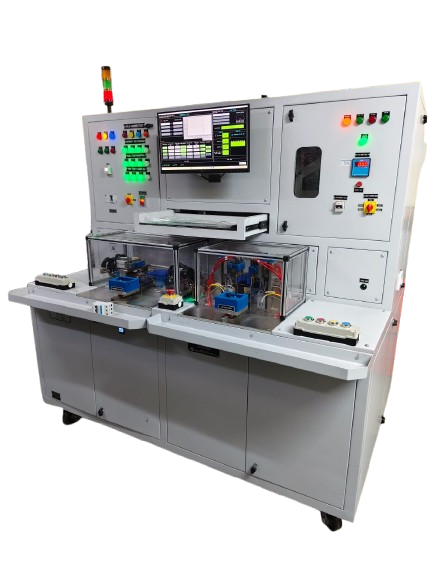

Magnetic and High Voltage Test Bench for MCB 1300A
Magnetic and High Voltage Test Setup for MCB PC Based Single Station Magnetic and High Voltage Test Setup for MCB 0.5A to 63A along with Auto Adjustable AC Current Source: 1.5A to 1300A short time at suitable voltage to test the product. PC Based Magnetic and High Voltage Test Setup for MCB – 1300A SCR […]

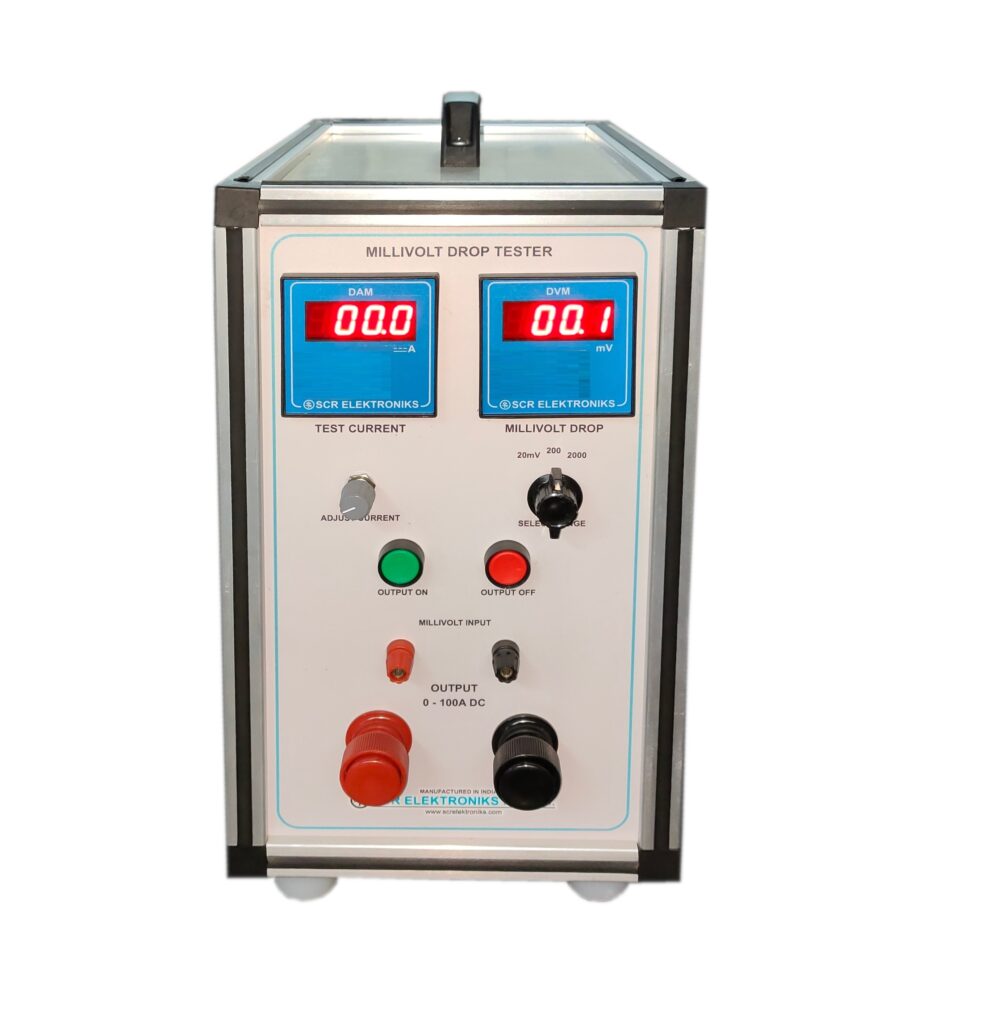

Millivolt Drop /Voltage Drop Tester as per IEC 60898, IEC 60947-2
Millivolt Drop Tester with Constant Current Source up to 400A The equipment is designed for voltage-drop and contact-resistance testing of switchgear products in compliance with standards such as IEC 60898, IEC 60947-2, IEC 61008-1, IEC 61009-1 etc. Millivolt Drop Tester (MVDT) CE Certified SCR Elektroniks has developed a Millivolt Drop Tester (MVDT) with CE Compliance designed […]

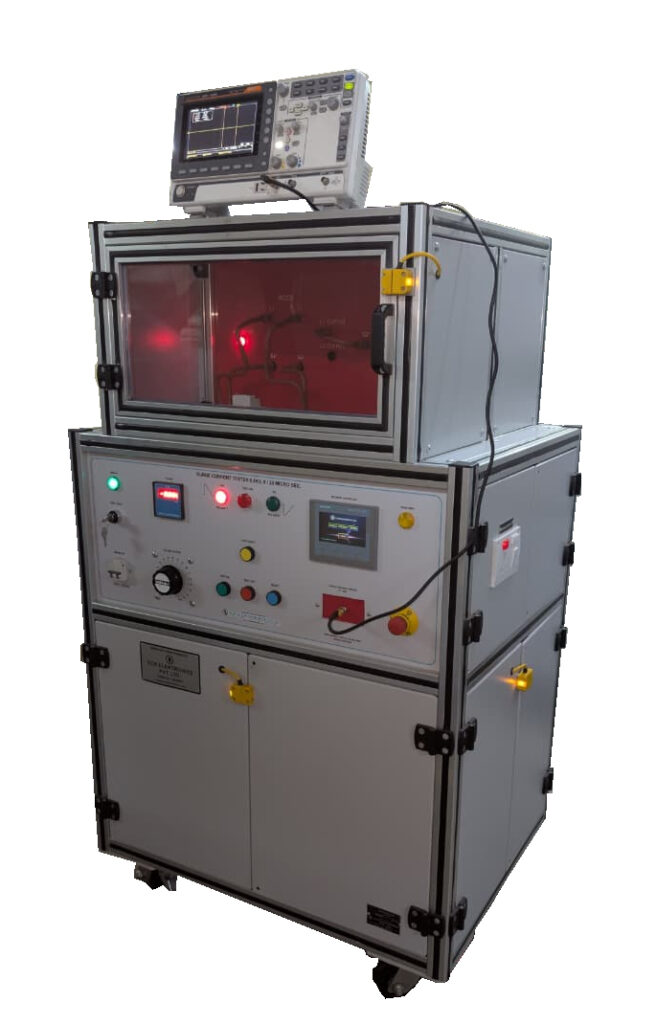

Surge Current Tester as per IEC 61008-1 (8/20 microSec)
Surge Current Tester as per IEC 61008-1 Surge Current Tester with 8/20 µs waveform is designed for type testing of Residual Current Circuit Breakers (RCCBs) as per IEC 61008-1 Surge Current Tester as per IEC 61008-1 This SCR Elektroniks make Surge Current Tester – 8/20 µs waveform is designed for type testing of Residual Current Circuit […]

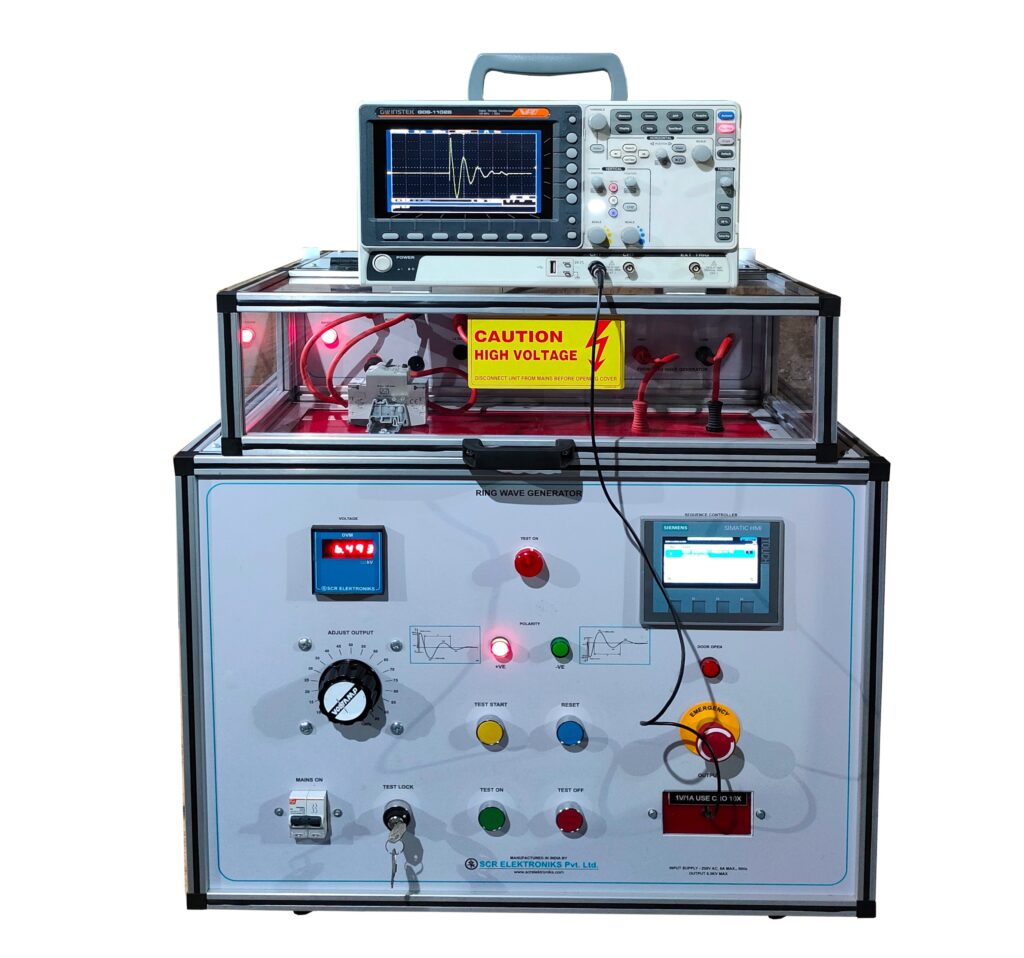

Ring Wave Generator as per IEC 61008-1
Ring Wave Generator as per IEC 61008 The equipment is designed for testing Residual Current Circuit Breakers (RCCB) as per IS 12640 (Part 1) / IEC 61008-1 Clause No. 9.19.1 Ring Wave Generator as per IEC 61008-1 SCR Elektroniks make Ring Wave Generator is designed for testing of Residual Current Circuit Breakers (RCCB) according to […]

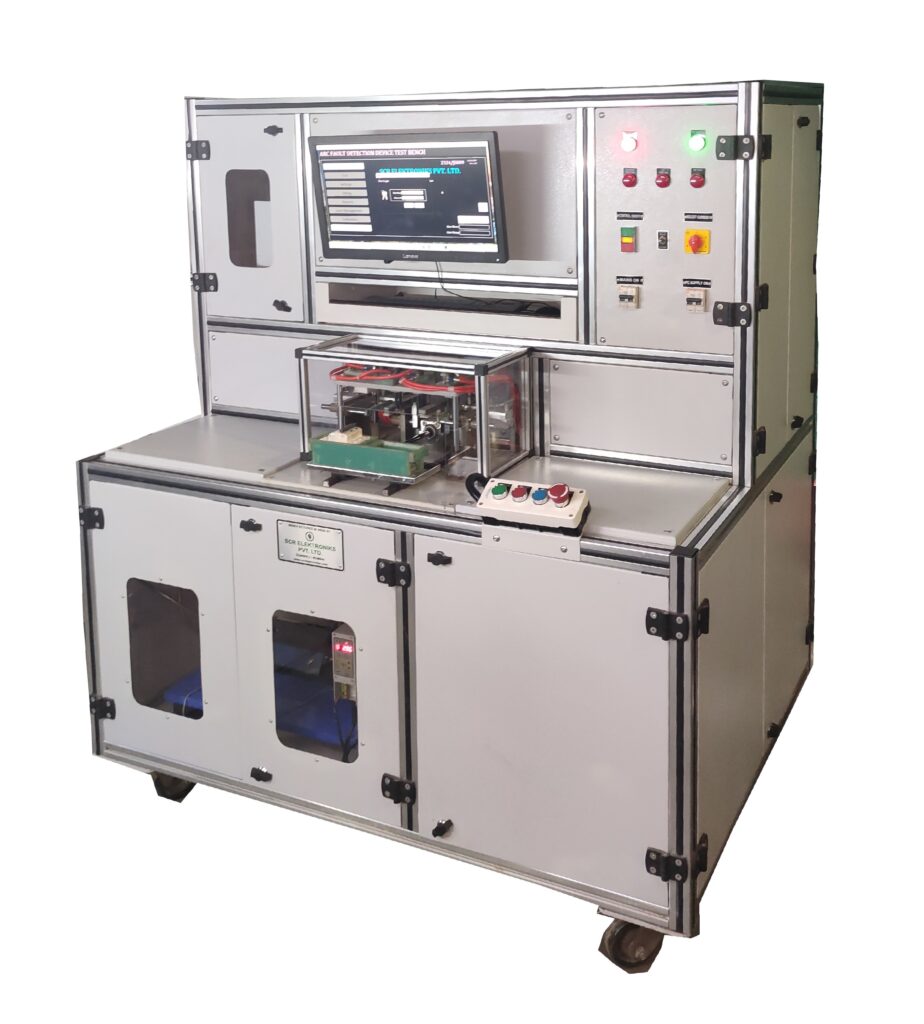

Arc Fault Detection Device Testing Equipment
ARC Fault Detection Device (AFDD) Test Bench Test Bench for Arc Fault Detection Devices (AFDDs) – in accordance with IEC 62606 standard used to simulate and verify the performance of AFDDs under various arc fault conditions. Test Bench for Arc Fault Detection Devices (AFDD) as per IEC 62606 SCR make an AFDD (Arc Fault Detection […]

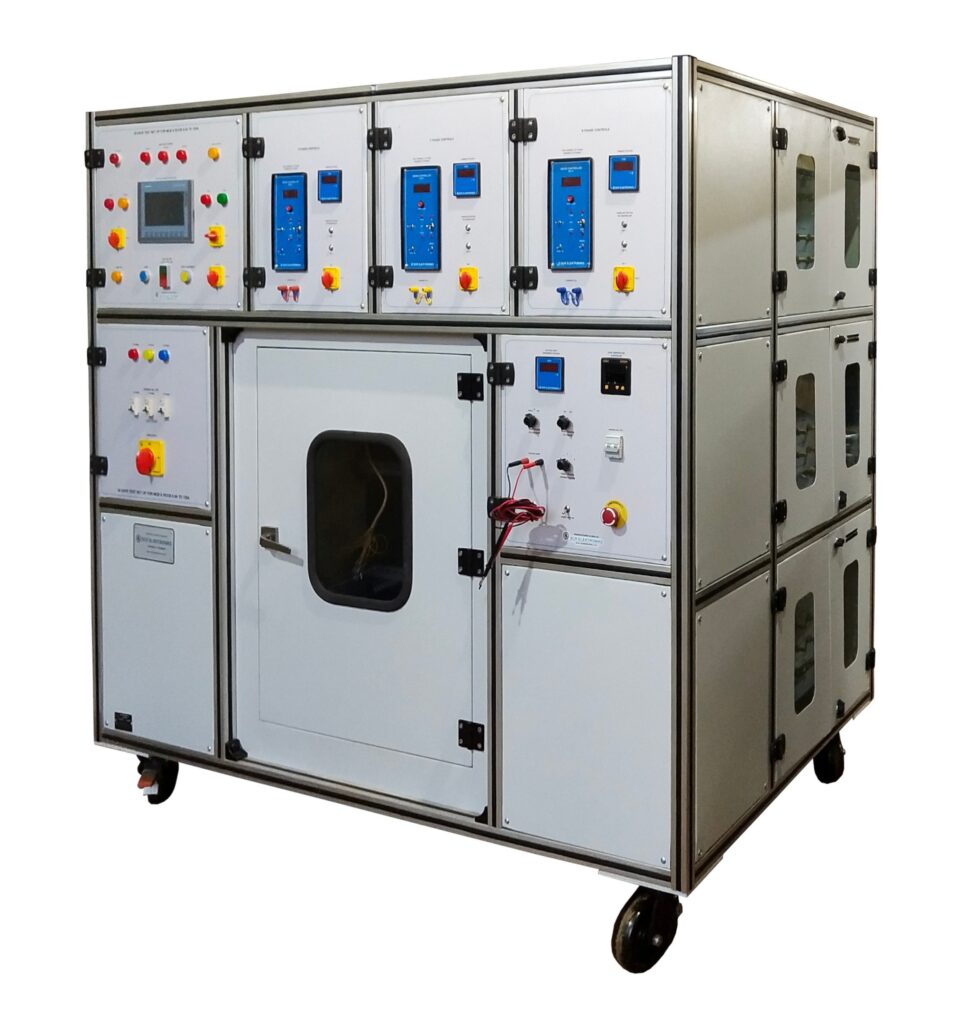

RCCB and RCBO Testing Equipments as per IEC 61008-1
RCCB and RCBO Testing Equipments as per IEC 61008-1 SCR Elektroniks offers a comprehensive suite of test benches for RCCB and RCBO designed to carryout the type test namely, Verifications of Operating Characteristic as per IS 12640 & IEC 61008 clause No. 9.9 & 9.15, 9.16. RCCB and RCBO 28 Days and Temperature Rise Test […]
